Tuam Tshoj Hoobkas ALLTO tam sim no Promotional Yam- Axial Expansion Joints nrog tus nqi sib tw
Khoom Taw Qhia

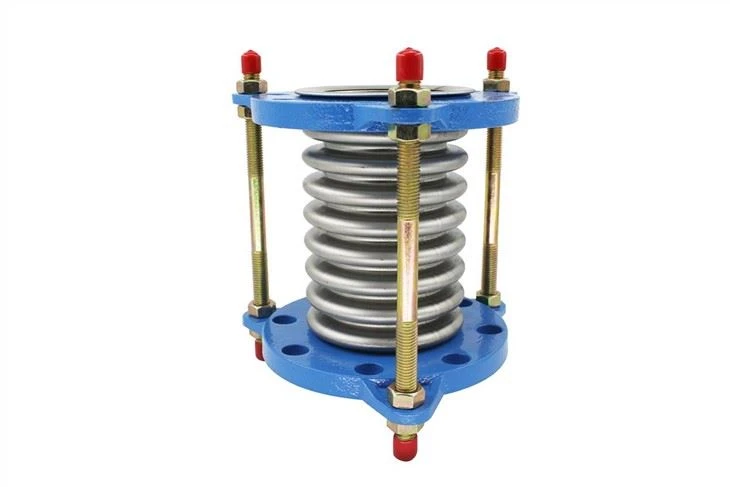

Axial Expansion Joints yog cov khoom siv tseem ceeb siv hauv cov kav dej, tseem hu ua yeeb nkab expansion pob qij txha. Lawv tsom mus daws cov teeb meem tshwm sim los ntawm qhov kub thiab txias thiab av qeeg hauv cov kav dej. Thaum cov kav dej raug cuam tshuam los ntawm kev hloov pauv kub lossis av qeeg, lawv tuaj yeem deform vim thermal expansion thiab contraction, ua rau cov kav dej tawg lossis kev sib txuas puas. Lub luag haujlwm ntawm Axial Expansion Joints yog tso cai rau cov kav dej kom nthuav dav thiab cog lus hauv qhov xwm txheej no, tshem tawm cov teebmeem ntawm cov kav dej deformation thiab siab, ua rau cov kav dej ruaj khov thiab nyab xeeb.
Sealing nto yog molded nrog bellows ib zaug yam tsis muaj vuam. Lub corrosion ntawm welded khoom yuav raug tshem tawm. Axial Expansion pob qij txha (bellows) tau nruab rau hauv cov kav dej kom nqus tau kev co thiab poob siab. Axial Expansion Joints kuj muaj qhov zoo xws li txo cov suab nrov thiab them nyiaj los ntawm misalignment. Txhawm rau qhib ntau lub lag luam txawv teb chaws, ua siab dawb nrhiav cov neeg sawv cev lossis cov neeg xa khoom thoob plaws ntiaj teb.
Khoom Parameters
| Loj | Flange Txuj |
Nruab Ntev mm |
Flange THK mm | Flange Khoom |
Hauv qab Khoom siv |
Convolutions | Hauv qab THKmm |
Axial zog | Qhov hnyav KG |
| DN40 |
PN10/NP16 |
145 | 15 | Groove Hlau hlau |
TIAB SA 304 |
8 |
0.5 | 20 | 2.65 |
| DN 50 | 155 | 16 | 0.5 | 20 | 2.95 | ||||
| DN 65 | 185 | 17 | 0.6 | 26 | 3.8 | ||||

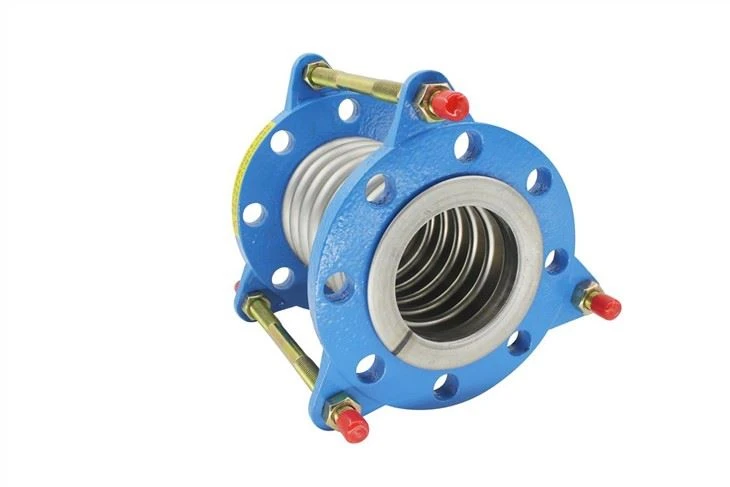

| DN 80 | 200 | 18 | 0.6 | 28 | 4.75 | ||||
| DN100 | 205 | 19 | 0.6 | 34 | 5.6 | ||||
| DN125 | 245 | 20 | 0.6 | 40 | 7.2 | ||||
| DN150 | 255 | 21 | 0.6 | 40 | 8.9 | ||||
| DN200 | PIB 10 | 285 | 22 | 0.8 | 40 | 13.5 | |||
| DN 250 | 280 | 23 | 7 | 1.0 | 40 | 18 | |||
| DN 300 Nws | 295 | 24 | 6 | 1.2 | 40 | 21 | |||
| DN200 | NP16 | 285 | 24 | 8 | 0.8 | 40 | 13.5 | ||
| DN 250 | 285 | 24 | 7 | 1.0 | 40 | 21 | |||
| DN 300 Nws | 300 | 26 | 6 | 1.2 | 40 | 25 | |||
| Loj | Flange Txuj |
Nruab Ntev mm |
Flange THK mm | Flange Khoom |
Hauv qab Khoom siv |
Convolutions | Hauv qab THKmm |
Axial zog | Qhov hnyav KG |
| DN40 | PN10/NP16 | 145 | 15 | Hlau hlau | TIAB SA 304 | 8 | 0.5 | 20 | 3.41 |
| DN 50 | 155 | 16 | 0.5 | 20 | 4.25 | ||||
| DN 65 | 185 | 17 | 0.6 | 26 | 5.42 | ||||
| DN 80 | 200 | 18 | 0.6 | 28 | 6.5 | ||||
| DN100 | 205 | 19 | 0.6 | 34 | 7.95 | ||||
| DN125 | 245 | 20 | 0.6 | 40 | 9.1 | ||||
| DN150 | 255 | 21 | 0.6 | 40 | 12.3 | ||||
| DN200 | PIB 10 | 285 | 22 | 0.8 | 40 | 17.75 | |||
| DN 250 | 280 | 23 | 7 | 1.0 | 40 | 23 | |||
| DN 300 Nws | 295 | 24 | 6 | 1.2 | 40 | 27 | |||
| DN200 | NP16 | 285 | 24 | 8 | 0.8 | 40 | 16.8 | ||
| DN 250 | 285 | 24 | 7 | 1.0 | 40 | 28.15 | |||
| DN 300 Nws | 300 | 26 | 6 | 1.2 | 40 | 34.8 | |||
Khoom npe: Axial Expansion Joints
Qhov chaw ntawm Keeb Kwm: Henan, Suav
Hom Lub Npe: ALLTO
Cov khoom siv flange: Cov Hlau Hlau
Khoom siv hauv qab: SS304
Technics: Tsis-welded
Kev sib txuas: Flange
Lub taub hau Code: Round
Loj: DN 40-DN300
Flange Txheem: PN10, PN16
Rated Ua Haujlwm Siab: 10bar, 16bar
Daim ntawv pov thawj: ISO 9001
HS Code: 7307 22
Axial Expansion Joints Daim Ntawv Thov: Siv hauv Gas, Roj, Dej, Dej Kub, kwj
OEM / ODM: Tso cai
Kev xa khoom sai nrog ntau ntau 5-20hnub

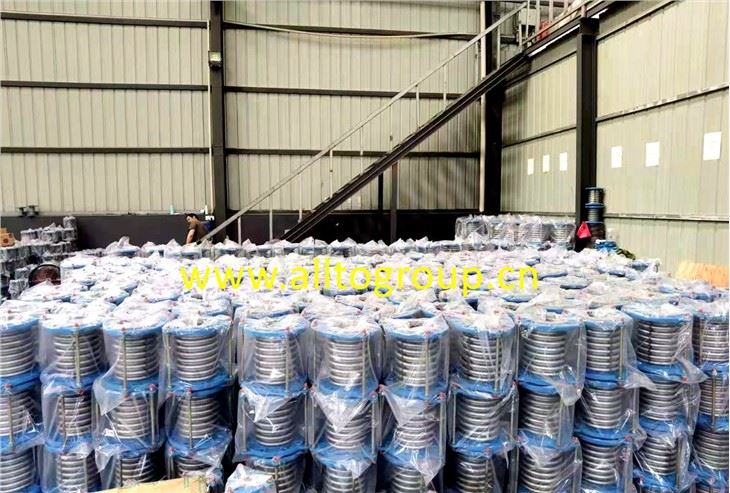

Ntim & Xa khoom:
Ntim Cov Lus Qhia
Carton Box, Pallet, lossis Plywood Case
Chaw nres nkoj Shanghai lossis Ningbo lossis Chaw nres nkoj hauv Suav teb
Khoom Qhia
Q: Koj puas yog tuam txhab lag luam lossis chaw tsim khoom?
A: Peb yog cov chaw tsim khoom ntawm expasnion sib koom ua ke, hloov tau yooj yim sib koom ua ke, hloov tau yooj yim hose, PTFE compensator, steel khoom nrog ntau tshaj 26- xyoo dhau los.
Q: Koj puas muaj cov khoom catalogue?
A: Yog, peb muaj. Thov qhia rau kuv koj tus email lossis instant messager, peb yuav xa peb cov catalogue.
Q: Koj cov khoom puas tau raug xa tawm?
A: Yog lawm, lawv tau raug xa tawm mus rau Tebchaws Meskas, Fabkis, Bahrain, Australia, Malaysia, Norway, Finland, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Serbia, Nyab Laj, Kaus Lim Qab Teb, Indonesia , Is Nrias teb, Thaib, Pakistan, Philippines, Singapore thiab lwm yam.
Q: Koj lub sijhawm xa khoom ntev npaum li cas?
A: Nyob ntawm QTY, tab sis feem ntau tsis tshaj 20 hnub ua haujlwm, peb ib txwm muaj Tshuag txog 10000pcs
Q: Cov khoom puas tuaj yeem tsim los ntawm cov neeg siv khoom xav tau?
A: Yog, cov lus qhia tshwj xeeb tau teev saum toj no yog cov qauv, peb tuaj yeem tsim thiab tsim khoom raws li qhov xav tau.
Q: Visting tuam txhab tso cai los yog tsis?
A: Yog, peb txais tos cov neeg siv khoom tuaj xyuas peb lub tuam txhab. Peb nyob hauv Zhengzhou, Henan Prov., Suav.
Peb lub tuam txhab yog ib lub tuam txhab kev tshaj lij tshwj xeeb hauv kev tsim cov khoom siv dej thiab cov dej ntws.
thiab pipeline accessories. peb tau tsim tawm txij li xyoo 1996, tus nqi tsim nyog, zoo siab thiab kev pabcuam siab.
Cov khoom tseem ceeb: Rubber Expansion Joints, Flexible Hose, Metallic Expansion Bellows, Dismantling Joints, Valves.
Peb muaj ib pab neeg hluas thiab muaj zog. Pab neeg no muaj kev kawm siab thiab tsim nyog. Lawv paub yuav ua li cas
ua haujlwm thiab tswj; lawv nkag siab tias yuav ua li cas los ua ib lub koom haum sib haum xeeb thiab paub txog kev txhim kho tus kheej. Peb siv zog ua
tsim kom muaj ib pab neeg uas yog raws li "people oriented.work in earnest" Peb muab kev pabcuam kev sib koom tes rau
peb cov neeg siv khoom thaum lub sijhawm tag nrho cov txheej txheem yuav khoom.
Cim npe nrov: Axial Expansion Joints
